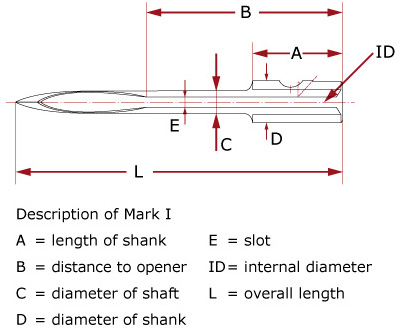

Needles Mark I (without cutting edge)
Dimensions in mm | (printable table)

Item No	Material	Packaging	A	B	C	D	L	E	ID
M1 - SS	All Steel	Kits of 5 pcs	8	19.6	1.9	3.96	30.5	0.85	1.2
M1 - S INOX	Stainless Steel	Kits of 5 pcs	8	19.6	1.9	3.96	30.5	0.85	1.2
M1 - SP	Plastic Shank	Kits of 5 pcs	8	20	1.85	3.96	28.6	0.83	1.28
M1 - SHD	All Steel	Kits of 5 pcs	8	19.6	2.2	3.96	30.5	0.85	1.25
M1 - XS	All Steel	Kits of 5 pcs	8	18	1.45	3.96	26	0.6	0.87
M1 - XS - BP	All Steel	Kits of 5 pcs	8	18	1.45	3.96	26	0.6	0.87
M1 - XL	All Steel	Kits of 5 pcs	8	29	1.6	3.96	37.5	0.6	0.91
M1 - L	All Steel	Kits of 5 pcs	8	28.8	2	3.96	40	0.85	1.26
M1 - LHD	All Steel	Kits of 5 pcs	8	28.3	2.2	3.96	40	0.85	1.3
M1 - VL 50	All Steel	Kits of 5 pcs	8	39.5	2.15	3.96	50	0.85	1.3

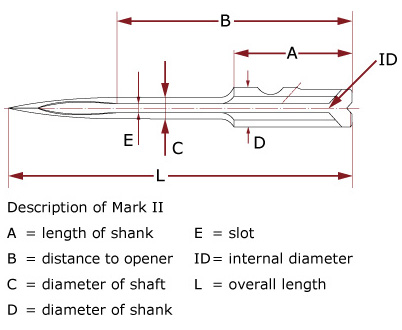

M2 - RS	All Steel	Kits of 5 pcs	11.8	25	1.95	3.96	36	0.85	1.3
M2 - HD	All Steel	Kits of 5 pcs	11.8	25	2.2	3.96	36	0.85	1.35
M2 - LHD	All Steel	Kits of 5 pcs	11.8	32.5	2.3	3.96	44.5	0.85	1.38
M2 - HD INOX	Stainless Steel	Kits of 5 pcs	11.8	25	2.2	3.96	36	0.85	1.32
M2 - F S	All Steel	Kits of 5 pcs	11.8	20.2	1.52	3.96	28	0.6	0.92
M2 - F BP	All Steel	Kits of 5 pcs	11.8	20.5	1.45	3.96	27.5	0.6	0.88
M2 - F LL	All Steel	Kits of 5 pcs	11.8	40.2	1.6	3.96	48.6	0.6	0.88
M2 - F L	All Steel	Kits of 5 pcs	11.8	32.3	1.5	3.96	40.8	0.6	0.92
M2 - F UL	All Steel	Kits of 5 pcs	11.8	54	1.6	3.96	62.6	0.6	0.88
M2 - R UL	All Steel	Kits of 5 pcs	11.8	51.5	2.1	3.96	62.6	0.85	1.25
M2 - L HD INOX	Stainless Steel	Kits of 5 pcs	11.8	32.5	2.5	3.96	44.2	0.85	1.38
M2 - RP - 5	Plastic Shank	Kits of 5 pcs	12.1	25	1.9	3.95	33.6	0.8	1.3
M2 - RP - 4	Plastic Shank	Kits of 4 pcs	12.1	25	1.9	3.95	33.6	0.8	1.3
M2 - RP - 100	Plastic Shank	Boxes of 100 pcs	12.1	25	1.9	3.95	33.6	0.8	1.3
M2 - RP - bulk	Plastic Shank	bulk	12.1	25	1.9	3.95	33.6	0.8	1.3
M2 - FP - 5	Plastic Shank	Kits of 5 pcs	12.1	19.3	1.35	3.95	25.7	0.6	0.84
M2 - FP - 4	Plastic Shank	Kits of 4 pcs	12.1	19.3	1.35	3.95	25.7	0.6	0.84
MP - FP - 100	Plastic Shank	Boxes of 100 pcs	12.1	19.3	1.35	3.95	25.7	0.6	0.84
M2 - FP - bulk	Plastic Shank	bulk	12.1	19.3	1.35	3.95	25.7	0.6	0.84

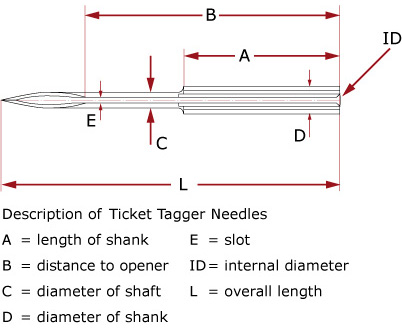

Standard TT-S	All Steel	Kits of 4 pcs	16	30.3	1.68	3.16	40.8	0.55	0.93
Fine TT-F	All Steel	Kits of 4 pcs	16	30.3	1.5	3.16	40.8	0.55	0.9
Ultra Fine TT-UF	All Steel	Kits of 4 pcs	16	30.3	1.42	3.16	40.8	0.55	0.9
Heavy Duty TT-HD	All Steel	Kits of 4 pcs	16	30.3	1.76	3.16	40.8	0.55	0.93
